Jump Items | PRA Cloud

What are Jump Items?

Jump Items are individual systems or devices that are made available for remote access within a Jump Group, enabling administrators to organize and control access to remote systems in a secure manner.

How are Jump Items useful to my organization?

Jump Items allow support users to securely access and troubleshoot remote systems, ensuring efficient issue resolution while maintaining control over which systems can be accessed and when. Create Jump Shortcuts to start standard support sessions, web jump shortcuts, VNC sessions, and Remote Desktop Protocol sessions, or to Shell Jump to SSH-enabled or Telnet-enabled network devices.

How do I access the Jump Items page?

1. Use a Chromium-based browser to sign in to your Privileged Remote Access URL.
   This URL is provided in the BeyondTrust welcome email and includes your site URL followed by /login.
2. From the left menu, click Jump.
   The Jump Clients page opens and displays by default.
3. At the top of the page, click Jump Items.
   The Jump Items page displays.

Jump Shortcuts Mass Import Wizard

You can use the Jump Shortcuts Mass Import Wizard to create Jump Shortcuts for anyone of the following sessions:

• Local Jump
• Remote Jump
• Remote VNC
• Remote RDP
• Shell Jump
• Protocol Tunnel Jump
• Web Jump

🚧

Important information

Linux Jumpoints can only be used for RDP, SSH/Telnet, and VNC sessions. Linux Jumpoints do allow for credential injection from user or Vault, as well as RemoteApp functionality and Shell Jump filtering. Clustered Jumpoints can only add new nodes of the same operating system.

You cannot mix Windows and Linux nodes.

When you create a large number of Jump shortcuts, it may be easier to import them via a spreadsheet than to add them one by one in the representative console.

Download a template suitable for importing Jump Shortcuts

To do this, use the templates via the Jump Shortcuts Mass Import Wizard and follow these steps:

1. From the Download a Template Suitable for Importing Jump Shortcuts section, click the dropdown and select the type of Jump Item you wish to add.
2. Click Download Template.
   A comma-separated file (*.csv) is downloaded.
3. Use the text in the CSV template as column headers and add the information for each Jump shortcut you wish to import. Optional fields can be filled in or left blank.

Import Jump Shortcuts

Once you have completed filling out the template, click Import Jump Shortcuts to upload the CSV file containing the Jump Item information. The CSV file should use the format described in the tables below.

ℹ️

The maximum file sized allowed to be uploaded at one time is 5 megabytes (MB). Only one type of Jump Item can be included in each CSV file.

Jump Shortcut Help

Local Jump Shortcut help

Parameter	API Value	Required	Default Value	Description
Hostname	local_jump_hostname	Yes		The hostname of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Name	name	Yes		The name of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jump Group	group	Yes		The code name of the Jump Group with which this Jump Item should be associated.
Tag	tag	No		You can organize your Jump Items into categories by adding a tag. This string has a maximum of 64 characters.
Comments	comments	No		You can add comments to your Jump Items. This string has a maximum of 1024 characters.
Jump Policy	jump_policy	No		The code name of a Jump Policy. You can specify a Jump Policy to manage access to this Jump Item.
Session Policy	session_policy	No		The code name of a Session Policy. You can specify a Session Policy to manage the permissions available on this Jump Item.
Endpoint Agreement Policy	endpoint_agreement_policy	No	no_prompt	The value "accept" will automatically accept the endpoint agreement if it times out and allow the session to start. The value "reject" will automatically reject the endpoint agreement and stop the session from starting. The value "no_prompt" will not show an endpoint agreement even if the feature is configured. This field has no effect if the global endpoint agreement setting is not enabled.

Remote Jump Shortcut help

Parameter	API Value	Required	Default Value	Description
Hostname	remote_jump_hostname	Yes		The hostname of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jumpoint	jumpoint	Yes		The code name of the Jumpoint through which the endpoint is accessed.
Name	name	Yes		The name of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jump Group	group	Yes		The code name of the Jump Group with which this Jump Item should be associated.
Tag	tag	No		You can organize your Jump Items into categories by adding a tag. This string has a maximum of 64 characters.
Comments	comments	No		You can add comments to your Jump Items. This string has a maximum of 1024 characters.
Jump Policy	jump_policy	No		The code name of a Jump Policy. You can specify a Jump Policy to manage access to this Jump Item.
Session Policy	session_policy	No		The code name of a Session Policy. You can specify a Session Policy to manage the permissions available on this Jump Item.
Endpoint Agreement Policy	endpoint_agreement_policy	No	no_prompt	The value "accept" will automatically accept the endpoint agreement if it times out and allow the session to start. The value "reject" will automatically reject the endpoint agreement and stop the session from starting. The value "no_prompt" will not show an endpoint agreement even if the feature is configured. This field has no effect if the global endpoint agreement setting is not enabled.

Remote VNC Jump Shortcut help

Parameter	API Value	Required	Default Value	Description
Hostname	remote_vnc_hostname	Yes		The hostname of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jumpoint	jumpoint	Yes		The code name of the Jumpoint through which the endpoint is accessed.
Port	port	No	5900	A valid port number from 100 to 65535.
Name	name	Yes		The name of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jump Group	group	Yes		The code name of the Jump Group with which this Jump Item should be associated.
Tag	tag	No		You can organize your Jump Items into categories by adding a tag. This string has a maximum of 64 characters.
Comments	comments	No		You can add comments to your Jump Items. This string has a maximum of 1024 characters.
Jump Policy	jump_policy	No		The code name of a Jump Policy. You can specify a Jump Policy to manage access to this Jump Item.
Session Policy	session_policy	No		The code name of a Session Policy. You can specify a Session Policy to manage the permissions available on this Jump Item.

Remote RDP Jump Shortcut help

Parameter	API Value	Required	Default Value	Description
Hostname	remote_rdp_hostname	Yes		The hostname of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jumpoint	jumpoint	Yes		The code name of the Jumpoint through which the endpoint is accessed.
Username	rdp_username	No		The username to sign in as.
Domain	domain	No		The domain the endpoint is on.
Quality	quality	No	best_performance	The quality at which to view the remote system. Can be black_white (Black & White for lowest bandwidth consumption), few_colors (8-bit color quality), more_colors (16-bit color for medium color quality performance), full_colors (32-bit for true color reproduction), best_performance (VP9 codec for more fluid video), or lossless (high definition for exact reproduction). This cannot be changed during the Remote Desktop Protocol (RDP) Session.
Console Session	console	No	0	1: Starts a console session. 0: Starts a new session.
Ignore Untrusted Certificate	ignore_untrusted	No	0	1: Ignores certificate warnings. 0: Shows a warning if the server's certificate cannot be verified.
SecureApp Type	secure_app_type	No	none	The SecureApp launch method. Can be "none", "remote_app" (to use RDP's built-in RemoteApp functionality), "remote_desktop_agent" (to use BeyondTrust's Remote Desktop Agent), or "remote_desktop_agent_credentials" (to use BeyondTrust's Remote Desktop Agent with Credential Injection). If "remote_desktop_agent" or "remote_desktop_agent_credentials" are chosen then the Remote Desktop Agent must be installed on the remote system.
RemoteApp Name	remote_app_name	No		The RemoteApp program name. This string has a maximum of 520 characters.
RemoteApp Parameters	remote_app_params	No		A space-separated list of parameters to pass to the RemoteApp. Parameters with spaces can be quoted using double-quotes. This string has a maximum of 16000 characters.
Remote Executable Path	remote_exe_path	No		The path to the remote executable that will be launched using the Remote Desktop Agent. This can only be used if the SecureApp Type uses the Remote Desktop Agent.
Remote Executable Parameters	remote_exe_params	No		A space-separated list of parameters to pass to the remote executable that will be launched using the Remote Desktop Agent. Parameters with spaces can be quoted using double-quotes. This can only be used if the SecureApp Type uses the Remote Desktop Agent.
Target System	target_system	No		The name of the target system being accessed by the remote application. This value is used to limit the list of injected credentials to only those that are valid on the target system. This value can only be used if the SecureApp Type uses the Remote Desktop Agent with Credential injection.
Credential Type	credential_type	No		The type of credentials that will be injected into the remote executable. This value will depend on the password vault from which credentials are retrieved. This value can only be used if the SecureApp Type uses the Remote Desktop Agent with Credential injection.
Name	name	Yes		The name of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jump Group	group	Yes		The code name of the Jump Group with which this Jump Item should be associated.
Tag	tag	No		You can organize your Jump Items into categories by adding a tag. This string has a maximum of 64 characters.
Comments	comments	No		You can add comments to your Jump Items. This string has a maximum of 1024 characters.
Jump Policy	jump_policy	No		The code name of a Jump Policy. You can specify a Jump Policy to manage access to this Jump Item.
Session Forensics	session_forensics	No	0	1: Enables RDP with Session Forensics functionality. 0: Uses normal RDP functionality.
Session Policy	session_policy	No		The code name of a Session Policy. You can specify a Session Policy to manage the permissions available on this Jump Item.

Shell Jump Shortcut help

Parameter	API Value	Required	Default Value	Description
Hostname	shelljump_hostname	Yes		The hostname of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jumpoint	jumpoint	Yes		The code name of the Jumpoint through which the endpoint is accessed.
Username	shelljump_username	No		The username to sign in as.
Protocol	protocol	Yes		Can either be "ssh" or "telnet".
Port	port	No	SSH: 22, Telnet: 23	A valid port number from 1 to 65535. Defaults to 22 if the protocol is SSH or 23 if the protocol is Telnet.
Terminal Type	terminal	No	xterm	Can be either xterm or vt100.
Keep-Alive	keep_alive	No		The number of seconds between each packet sent to keep an idle session from ending. Can be any number from 5 to 300 or blank to disable the feature.
Name	name	Yes		The name of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jump Group	group	Yes		The code name of the Jump Group with which this Jump Item should be associated.
Tag	tag	No		You can organize your Jump Items into categories by adding a tag. This string has a maximum of 64 characters.
Comments	comments	No		You can add comments to your Jump Items. This string has a maximum of 1024 characters.
Jump Policy	jump_policy	No		The code name of a Jump Policy. You can specify a Jump Policy to manage access to this Jump Item.
Session Policy	session_policy	No		The code name of a Session Policy. You can specify a Session Policy to manage the permissions available on this Jump Item.

Protocol Tunnel Jump Shortcut help

Parameter	API Value	Required	Default Value	Description
Hostname	protocol_tunnel_hostname	Yes		The hostname of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jumpoint	jumpoint	Yes		The code name of the Jumpoint through which the endpoint is accessed.
Name	name	Yes		The name of the endpoint to be accessed by this Jump Item. This string has a maximum of 128 characters.
Jump Group	group	Yes		The code name of the Jump Group with which this Jump Item should be associated.
Tunnel Type	tunnel_type	No	tcp	The type of tunnel which is one of IP, K8S, MSSQL, MySQL, PSQL, or TCP.
Tunnels	tcp_tunnels	No		The list of one or more tunnel definitions. It is required when the tunnel type is TCP. A tunnel definition is a mapping of a TCP port on the local user's system to a TCP port on the remote system specified by the hostname. Any connection made to the local port will cause a connection to be made to the remote port, allowing data to be tunnelled between local and remote systems. Multiple mappings should be separated by a semicolon. An example input for this field is "auto->22;3306->3306". In this example, a randomly chosen local port maps to remote port 22, and local port 3306 maps to remote port 3306.
Filter Rules	filter_rules	No		The list of one or more filter rules. It is required when the tunnel type is IP. A filter rule is required to contain an IP address rule, and may contain an optional port rule and optional IANA protocol keyword (default ANY), each separated by a space in the order of: IP rule, port rule, protocol number. Multiple rules should be separated by a semicolon. An IP rule is either a range in the form of two IPv4 addresses separated by a dash, a list in the form of 1 or more IPv4 addresses separated by a comma, or CIDR notation IP address. A port rule is either a range of port numbers (from 1 to 65535) in the form of two ports separated by a dash or a list in the form of 1 or more ports separated by a comma. An example input for this field is "192.168.12.0/24 9000 TCP;192.168.1.10-192.168.1.20 8000-8005 UDP;192.168.2.10,192.168.2.20 ANY;10.10.10.10 ICMP;127.0.0.1 90,9000 TCP".
Username	username	No		The username which is required when the tunnel type is mssql. This string has a maximum of 128 characters.
Database	database	No		The database which is used when the tunnel type is mssql. This string has a maximum of 128 characters.
Local Address	local_address	No	127.0.0.1	The local address on which the system will be listening for connections to the defined tunnels. The value must be within the 127.0.0.0/24 subnet.
Tag	tag	No		You can organize your Jump Items into categories by adding a tag. This string has a maximum of 64 characters.
Comments	comments	No		You can add comments to your Jump Items. This string has a maximum of 1024 characters.
Jump Policy	jump_policy	No		The code name of a Jump Policy. You can specify a Jump Policy to manage access to this Jump Item.
Session Policy	session_policy	No		The code name of a Session Policy. You can specify a Session Policy to manage the permissions available on this Jump Item.
URL	url	No		The url which is used for Kubernetes tunnel jump items. This string has a maximum of 256 characters.
CA Certificates	ca_certificates	No		The certificate which is used for Kubernetes tunnel jump items. This string has a maximum of 12288 characters.

Web Jump Shortcut Help

Parameter	API Value	Required	Default Value	Description
Name	website_name	Yes		The name of the Website to be accessed by this Jump Item.
Jumpoint	jumpoint	Yes		The code name of the Jumpoint through which the endpoint is accessed.
Jump Group	group	Yes		The code name of the Jump Group with which this Jump Item should be associated.
Tag	tag	No		You can organize your Jump Items into categories by adding a tag. This string has a maximum of 64 characters.
Comments	comments	No		You can add comments to your Jump Items. This string has a maximum of 1024 characters.
Jump Policy	jump_policy	No		The code name of a Jump Policy. You can specify a Jump Policy to manage access to this Jump Item.
Session Policy	session_policy	No		The code name of a Session Policy. You can specify a Session Policy to manage the permissions available on this Jump Item.
URL	url	Yes		The website's URL. The URL must begin with a protocol of either "http" or "https".
Verify Certificate	verify_certificate	No	1	1: Verify certificate validity and, if there are problems, prevent the session from starting. 0: Ignore all certificate problems.
Username Format	username_format	No	passthru	passthru: Pass the username through directly from the credential provider. username_only: If the username is in UPN (Username@Domain) or DLLN (DOMAIN\Username) format then the domain is removed. Only the username is injected.
Username Field Hint	username_field_hint	No		A CSS style query selector that identifies the username field to help with the initial credential injection. If this value is provided and a matching element is not found, then the credential injection will fail.
Password Field Hint	password_field_hint	No		A CSS style query selector that identifies the password field to help with the initial credential injection. If this value is provided and a matching element is not found, then the credential injection will fail.
Submit Button Hint	submit_button_hint	No		A CSS style query selector that identifies the submit button to help with the initial credential injection. If this value is provided and a matching element is not found, then the credential injection will fail.
Auth Timeout	authentication_timeout	No	3	The amount of time in seconds the web Jump Client should wait for authentication to succeed before timing out. This can be any number from 1 to 30.

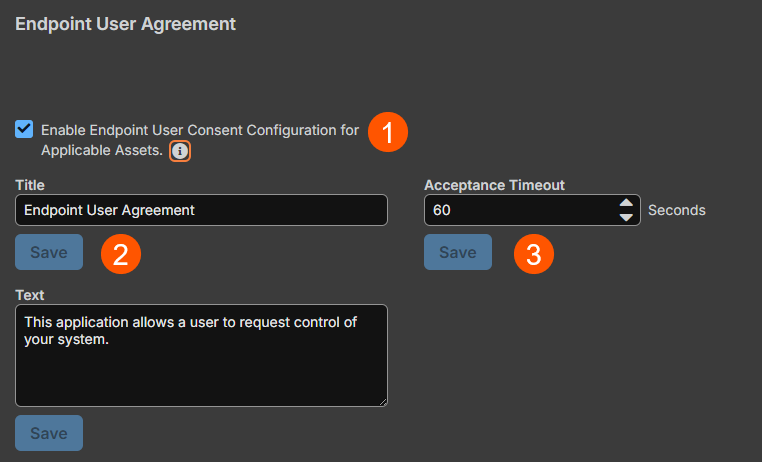

Endpoint User Agreement

The endpoint agreement prompts the end user to allow the Jump Shortcut to run. To enable the endpoint agreement:

1. Click the Enable Endpoint User Consent Configuration for Applicable Jump Items checkbox.
2. Add a Title and Text.
3. Add a Timeout value. The default value is 60 seconds.
4. Be sure to Save each change.

ℹ️

The Endpoint Agreement only applies to Jump Clients, Remote Jump Shortcuts, and Local Jump Shortcuts.

Jump Item settings

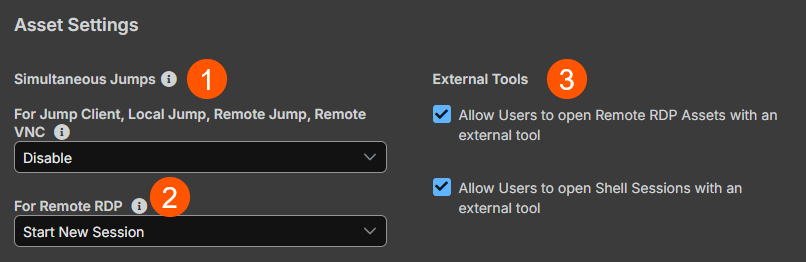

Simultaneous Jumps

Simultaneous Jumps provide a way for multiple users to gain access to the same jump item without having to be invited to join an active support session by another user.

1. By using the For Jump Client, Local Jump, Remote Jump, Remote VNC field, you can create new sessions. The options you can choose are the following:

2. From the For Remote RDP field, you can create new sessions which jump to a specific RDP Jump item. The options you can choose are the following:

3. From the External Tools section, select the appropriate checkboxes to use external tools (that is, bring your own tools (BYOT)) with a Remote RDP or Shell sessions. If selected, this enables a user to run the local RDP client vs the one embedded in the Access console.

Shell Filtering

The Shell feature restricts which commands can be executed. It works in conjunction with the values that are configured for an individual on the Command Shell section of the Users & Security > Users page. For groups of users, you can set up session policies on the Users & Security > Session Policies page.

Shell Prompt Matching Validation

A part of the Shell feature is being able to tell when your shell is at a prompt, so regex pattern is used that matches a shell prompt, and a default one that works almost anywhere is given.
