Security providers | PRA On-prem

• Name: Create a unique name to help identify this provider.

• Enabled: If checked, your appliance can search this security provider when a user attempts to log in to the access console or /login. If unchecked, this provider will not be searched.

• User authentication: This allows this provider to be used to authenticate users. If deactivated, this provider may be used only to look up groups for user permissions.

  • User provision: By default, user provisioning occurs on this provider. If you have a SCIM provider set up, you can choose to provision users through that provider instead.

    ℹ️

    This setting cannot be changed after the security provider has been saved.

• Keep user information synchronized with the LDAP server: The display names are set according to the User Schema Settings defined below. If you are planning to sync a user's photo attribute, this option must be checked.

• Authorization settings

  • Enable LDAP object cache: If checked, LDAP objects visible to the appliance are cached and synchronized nightly, or manually, if desired. When using this option, fewer connections are made to the LDAP server for administrative purposes, thereby potentially increasing speed and efficiency.

    If unchecked, changes to the LDAP server are immediately available without the need to synchronize. However, when you make changes on user policies through the administrative interface, several short-lived LDAP connections may occur as necessary.

    For providers that have previously had the synchronization setting enabled, disabling the synchronization option will cause all cached records that are currently not in use to be deleted.

  • Lookup groups: Choose to use this security provider only for user authentication, only for group lookups, or for both. User Authentication must be selected if you want to turn group lookup off.

  • Default group policy: (Visible only if user authentication allowed) Each user who authenticates against an external server must be a member of at least one group policy in order to authenticate to your appliance, logging into either the /login interface or the access console. You can select a default group policy to apply to all users allowed to authenticate against the configured server.

    ℹ️

    If a default policy is defined, then any allowed user who authenticates against this server will potentially have access at the level of this default policy. Therefore, it is recommended that you set the default to a policy with minimum privileges to prevent users from gaining permissions that you do not wish them to have.

    If a user is in a default group policy and is then specifically added to another group policy, the settings for the specific policy will always take precedence over the settings for the default, even if the specific policy is a lower priority than the default, and even if the default policy's settings are set to disallow override.

  • LDAP search: The search method determines how available members are found for this provider in group policies. The prefix method searches only at the beginning of names, while the substring method looks for the pattern anywhere within the name. Note that the substring method can be very slow on some LDAP servers. If you choose substring, please adjust the Paged Search Timeout accordingly.

  • Paged search timeout: (Visible only if substring search selected) Set how long a search should run before timing out.

• Connection settings (Not visible for clusters)

  • Hostname: Enter the hostname of the server that houses your external directory store.

    ℹ️

    If you will be using LDAPS or LDAP with TLS, the hostname must match the hostname used in your LDAP server's public SSL certificate's subject name or the DNS component of its alternate subject name.

  • Port: Specify the port for your LDAP server. This is typically port 389 for LDAP or port 636 for LDAPS. BeyondTrust also supports global catalog over port 3268 for LDAP or 3269 for LDAPS.

  • Encryption: Select the type of encryption to use when communicating with the LDAP server. For security purposes, LDAPS or LDAP with TLS is recommended.

    ℹ️

    Regular LDAP sends and receives data in clear text from the LDAP server, potentially exposing sensitive user account information to packet sniffing. Both LDAPS and LDAP with TLS encrypt user data as it is transferred, making these methods recommended over regular LDAP. LDAP with TLS uses the StartTLS function to initiate a connection over clear text LDAP but then elevates this to an encrypted connection. LDAPS initiates the connection over an encrypted connection without sending any data in clear text whatsoever.

    If you select LDAPS or LDAP with TLS, you must upload the Root SSL Certificate used by your LDAP server. This is necessary to ensure the validity of the server and the security of the data. The Root Certificate must be in PEM format. A certificate chain cannot be used.

    If the LDAP server's public SSL certificate's subject name or the DNS component of its alternate subject name does not match the value in the Hostname field, the provider will be treated as unreachable. You can, however, use a wildcard certificate to certify multiple subdomains of the same site. For example, a certificate for *.example.com would certify both access.example.com and remote.example.com.

  • Bind credentials: Specify a username and password with which your appliance can bind to and search the LDAP directory store.

    Binding credentials require a specific notation. Enter the username in the following format:

    • DOMAIN\Username
    • If your version of Active Directory does not support this notation use, USERNAME@DOMAIN

    If your server supports anonymous binds, you may choose to bind without specifying a username and password. Anonymous binding is considered insecure and is turned off by default on most LDAP servers.

  • Connection method: If you are using an external directory store in the same LAN as your appliance, the two systems may be able to communicate directly, in which case you can leave the option Proxy from appliance through the Connection Agent unchecked and move on.

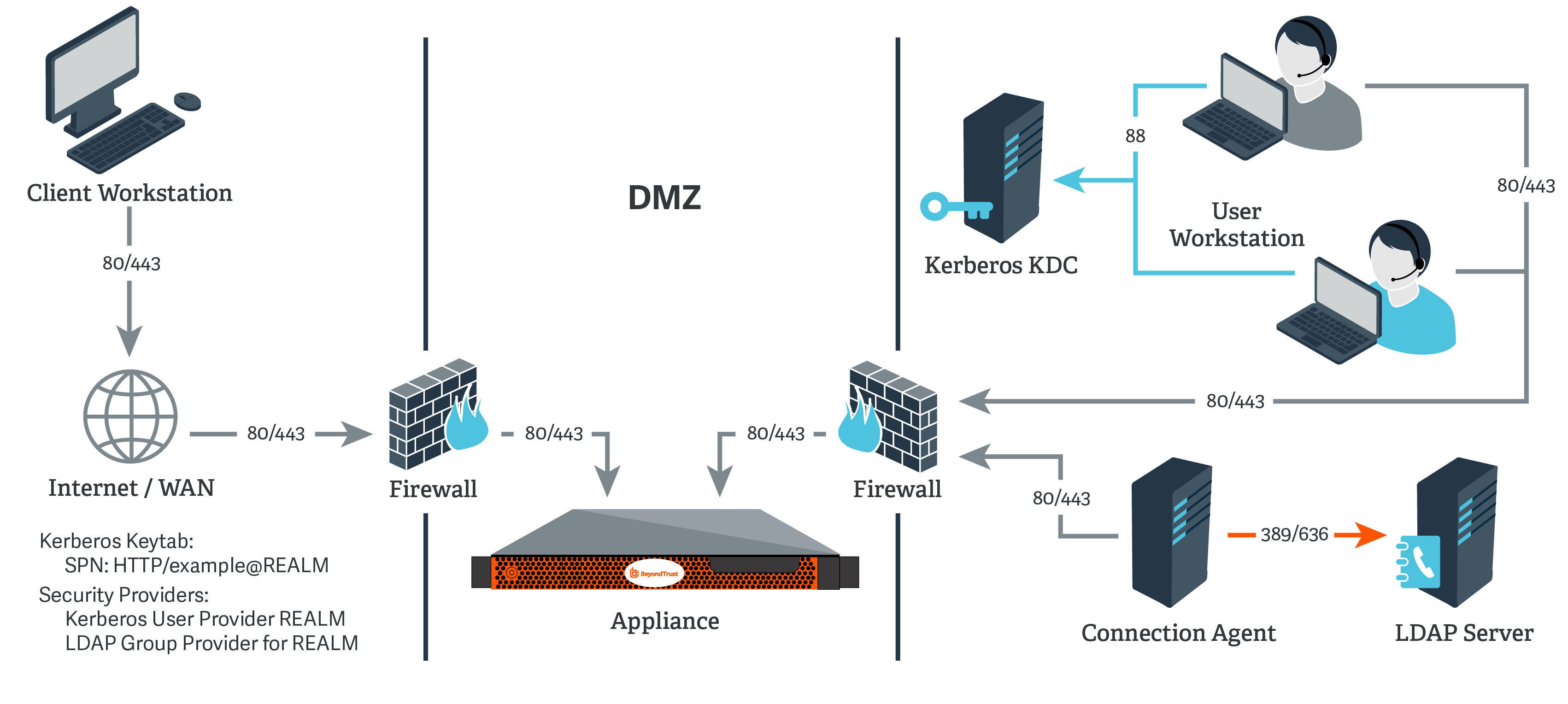

    If the two systems are unable to communicate directly, such as if your external directory server is behind a firewall, you must use a connection agent. Downloading the Win32 connection agent enables your directory server and your appliance to communicate via an SSL-encrypted, outbound connection, with no firewall configuration. The connection agent can be downloaded to either the directory server or a separate server on the same network as your directory server (recommended).

    In the case above, check Proxy from appliance through the Connection Agent. Create a Connection Agent Password for use in the connection agent installation process. Then click Download Connection Agent, run the installer, and follow the installation wizard. During installation, you will be prompted to enter the security provider name and the connection agent password you created above.

• Cluster settings (Visible only for clusters)

  • Member selection algorithm: Select the method to search the nodes in this cluster.

    • Top-to-bottom first attempts the server with the highest priority in the cluster. If that server is unavailable or the account is not found, the next highest priority server is attempted. The search moves down through the list of clustered servers until either the account is found or it is determined that the account does not exist on any of the specified and available servers.

    • Round-robin is designed to balance the load between multiple servers. The algorithm chooses at random which server to attempt first. If that server is unavailable or the account is not found, another random server is attempted. The search continues at random through the remaining servers in the cluster until either the account is found or it is determined that the account does not exist on any of the specified and available servers.

  • Retry delay: Set how long to wait after a cluster member becomes unavailable before trying that cluster member again.

• Directory type: (Not visible for clusters) To aid in configuring the network connection between your appliance and your security provider, you can select a directory type as a template. This pre-populates the configuration fields below with standard data but must be modified to match your security provider's specific configuration. Active Directory LDAP is the most common server type, though you can configure BeyondTrust to communicate with most types of security providers.

• User schema settings

  • Override cluster values: (Visible only for cluster nodes) If this option is unchecked, this cluster node will use the same schema settings as the cluster. If checked, you may modify the schema settings below.

  • Search base DN: Determine the level in your directory hierarchy, specified by a distinguished name, at which the appliance should begin searching for users. Depending on the size of your directory store and the users who require BeyondTrust accounts, you may improve performance by designating the specific organizational unit within your directory store that requires access. If you are not sure or if users span multiple organizational units, you may want to specify the root distinguished name of your directory store.

    Examples

    Example	Explanation
    dc=example,dc=local	This will search the entire directory structure of the company domain.
    ou=users,dc=example,dc=local	This will search just the users organizational unit within the directory hierarchy, ignoring other organizational units such as computers or groups.
    ou=Atlanta,dc=example,dc=local	This will search users and groups with a location of Atlanta.

  • User query: Specify the query information that the appliance should use to locate an LDAP user when the user attempts to log in. The User Query field accepts a standard LDAP query (RFC 2254 - String Representation of LDAP Search Filters). You can modify the query string to customize how your users log in and what methods of usernames are accepted. To specify the value within the string that should act as the username, replace that value with *.

    Examples

    Example	Explanation
    (&(sAMAccountName=*)(|(objectClass=user)↵ (objectClass=person)))	When jsmith logs into his account, the appliance will search the LDAP server for an object where the sAMAccountName is equal to jsmith.
    (&(|(sAMAccountName=*)(specialVendorAttribute=*))↵ (|objectClass=person)(objectClass=user))	This will search for an object where either the sAMAccountName or specialVendorAttribute contains jsmith and has an object class of either person or user.

  • Browse query: The browse query affects how results are displayed when browsing via group policies. This filters results so that only certain results display in the member selection dropdown when adding members to a group policy.

    Examples

    Example	Explanation
    (objectClass=*)	Default. Displays all objects returned by a query.
    (|(objectClass=user)(objectClass=organizationUnit))	Displays all user or organizationUnit object classes, filtering out any other objects.

  • Object classes: Specify valid object classes for a user within your directory store. Only users who posses one or more of these object classes will be permitted to authenticate. These object classes are also used with the attribute names below to indicate to your appliance the schema the LDAP server uses to identify users. You can enter multiple object classes, one per line.

    Examples

    Example	Explanation
    user	Users must have an object class of user.
    user person	Users must have an object class of user or person.

  • Attribute names: Specify which fields should be used for a user's unique ID and display names.

    • Unique ID: This field requests a unique identifier for the object. While the distinguished name can serve as this ID, a user's distinguished name may change frequently over the life of the user, such as with a name or location change or with the renaming of the LDAP store. Therefore, most LDAP servers incorporate some field that is unique per object and does not change for the lifetime of the user. If you do use the distinguished name as the unique ID and a user's distinguished name changes, that user will be seen as a new user, and any changes made specifically to the individual's BeyondTrust user account will not be carried over to the new user. If your LDAP server does not incorporate a unique identifier, use a field that is least likely to have an identical entry for another user.

      Examples

      The syntax for this field is in the form of [object]:[attribute].

      [object]	Specifies the user object class, which must be in the form of a descriptor or the wildcard *, indicating all valid user classes.
      [attribute]	Specifies the attribute that contains the unique user ID. This must be in the form of a descriptor or the special value ?, indicating the distinguished name of that user object.




      Example	Explanation
      *:objectGUID	All classes have an objectGUID attribute which is a unique identifier.
      user:userGUID person:personGUID	A user object has a userGUID attribute, a person object has a personGUID attribute, and both are unique.
      user:userGUID *:objectGUID	A user object has a userGUID attribute which should be used, but all other classes have an objectGUID attribute.
      user:? person:objectGUID	A user object has no unique identifier other than its distinguished name, but the person class has an objectGUID attribute which should be used.

    • E-mail: The email attribute synchronizes the user’s email address from LDAP. Note that the special ? and ! characters cannot be used.

    • Photo: This field allows you to configure LDAP providers to synchronize user photos from LDAP. By default, the settings template for Active Directory, Novell eDirectory, and OpenLDAP all use the *:jpegPhoto attribute. Administrators can modify the attribute as necessary. If no attribute is specified, then no photos are retrieved from LDAP.

      Photos in LDAP must be stored as a JPEG images, either as raw binary data or as Base64-encoded data. BeyondTrust Privileged Remote Access automatically detects the encoding and decodes it as needed.

      Examples

      The syntax for this field is in the form of [object]:[attribute].

      [object]	Specifies the user object class, which must be in the form of a descriptor or the wildcard *, indicating all valid user classes.
      [attribute]	Specifies the attribute that contains the photo.




      Example	Explanation
      *:jpegPhoto	All classes have a jpegPhoto attribute which stores the photo.
      user:jpegPhoto person:thumbnailPhoto	A user object has a jpegPhoto attribute that stores the photo, and a person object has a thumbnailPhoto attribute that stores the photo.
      user:jpegPhoto *:thumbnailPhoto	A user object has a jpegPhoto attribute which should be used, but all other classes should use a thumbnailPhoto attribute.




      ℹ️

      The ? and ! special characters are not supported for the photo attribute.

    • Use the same attribute for public and private display names: If this option is checked, you may specify separate values for the user's private and public display names.

    • Display names: These values determine which fields should be used as the user's private and public display names.

      Examples

      [object]	Specifies the user object class, which must be in the form of a descriptor or the wildcard *, indicating all valid user classes.
      [attribute]	Specifies the attribute that contains the desired display name. This must be in the form of either a descriptor or the special value ? or !. The special value ? uses the fully qualified distinguished name, while ! returns the value of the leftmost element of the distinguished name.




      Example	Explanation
      *:displayName	All classes have a displayName attribute.
      user:!	A user object should use the leftmost element of its distinguished name.
      user:displayName person:fullName	A user object has a displayName attribute, and a person object has a fullName attribute.
      *:!	For all classes, the leftmost element of the distinguished name should be used.
      user:displayName *:!	A user has a displayName attribute which should be used, but all other classes should use the value of the leftmost element of the distinguished name.
      user:? *:!	A user object should use the full distinguished name, but all other classes should use the value of the leftmost element of the distinguished name.

• Group schema settings (Visible only if user authentication is deactivated)

  • Search base DN: Determine the level in your directory hierarchy, specified by a distinguished name, at which the appliance should begin searching for groups. Depending on the size of your directory store and the groups that require access to the appliance, you may improve performance by designating the specific organizational unit within your directory store that requires access. If you are not sure or if groups span multiple organizational units, you may want to specify the root distinguished name of your directory store.

    Examples

    Example	Explanation
    dc=example,dc=local	This will search the entire directory structure of the company domain.
    ou=groups,dc=example,dc=local	This will search just the groups organizational unit within the directory hierarchy, ignoring other organizational units such as computers or users.
    ou=Atlanta,dc=example,dc=local	This will search users and groups with a location of Atlanta.

  • Browse query: The browse query affects how results are displayed when browsing via group policies. This filters results so that only certain results display in the member selection dropdown when adding members to a group policy.

    Examples

    Example	Explanation
    (objectClass=*)	Default. Displays all objects returned by a query.
    (|(objectClass=user)(objectClass=organizationUnit))	Displays all user or organizationUnit object classes, filtering out any other objects.

  • Object classes: Specify valid object classes for a group within your directory store. Only groups that posses one or more of these object classes will be returned. These object classes are also used with the attribute names below to indicate to your appliance the schema the LDAP server uses to identify groups. You can enter multiple group object classes, one per line.

    Examples

    Example	Explanation
    group	Groups must have an object class of group.
    group groupOfUniqueNames	Groups must have an object class of group or groupOfUniqueNames.

  • Attribute names: Specify which fields should be used for a group's unique ID and display name.

    • Unique ID: This field requests a unique identifier for the object. While the distinguished name can serve as this ID, a group's distinguished name may change frequently over the life of a group, such as with a location change or with the renaming of the LDAP store. Therefore, most LDAP servers incorporate some field that is unique per object and does not change for the lifetime of the group. If you do use the distinguished name as the unique ID and a group's distinguished name changes, that group will be seen as a new group, and any group policies defined for that group will not be carried over to the new group. If your LDAP server does not incorporate a unique identifier, use a field that is least likely to have an identical entry for another group.

      Examples

      The syntax for this field is in the form of [object]:[attribute].

      [object]	Specifies the group object class, which must be in the form of a descriptor or the wildcard *, indicating all valid group classes.
      [attribute]	Specifies the attribute that contains the unique group ID. This must be in the form of a descriptor or the special value ?, indicating the distinguished name of that group object.




      Example	Explanation
      *:objectGUID	All classes have an objectGUID attribute which is a unique identifier.
      group:groupGUID *:objectGUID	A group object has a groupGUID attribute which should be used, but all other classes have an objectGUID attribute.
      group:? *:objectGUID	A group object has no unique identifier other than its distinguished name, but all other classes have an objectGUID attribute which should be used.




      You can mix and match specific definitions, entering each definition on a separate line. However, only one *:[attribute] definition is supported. If multiple wildcard definitions are entered, only the last one will be used.

    • Display name: This value determines which field should be used as the group's display name.

      Examples

      The syntax for this field is in the form of [object]:[attribute].

      [object]	Specifies the user or group object class, which must be in the form of a descriptor or the wildcard *, indicating all valid user or group classes.
      [attribute]	Specifies the attribute that contains the desired display name. This must be in the form of either a descriptor or the special value ? or !. The special value ? uses the fully qualified distinguished name, while ! returns the value of the leftmost element of the distinguished name.




      Example	Explanation
      *:displayName	All classes have a displayName attribute.
      user:!	A user object should use the leftmost element of its distinguished name.
      user:displayName person:fullName	A user object has a displayName attribute, and a person object has a fullName attribute.
      *:!	For all classes, the leftmost element of the distinguished name should be used.
      user:displayName *:!	A user has a displayName attribute which should be used, but all other classes should use the value of the leftmost element of the distinguished name.
      user:? *:!	A user object should use the full distinguished name, but all other classes should use the value of the leftmost element of the distinguished name.

  • User to group relationships

    • Relationships: This field requests a query to determine which users belong to which groups or, conversely, which groups contain which users.

      Examples

      The syntax for this field is in the form of [user_object]:[user_attribute]=[group_object]:[group_attribute].

      [user_object]	Specifies the user object class, which must be in the form of a valid object class or the wildcard *, indicating all valid user classes.
      [user_attribute]	Specifies the attribute that contains the unique user ID. This must be in the form of a valid object class or the special value ?, indicating the distinguished name of that user object.
      [group_object]	Specifies the group object class, which must be in the form of a valid object class or the wildcard *, indicating all valid group classes.
      [group_attribute]	Specifies the attribute that contains the unique group ID. This must be in the form of a valid object class or the special value ?, indicating the distinguished name of that group object.




      There are several ways that a user-to-group relationship may be stored in an LDAP store. One way is to store the groups to which a user belongs as a property of the user. This typically is seen in an attribute called memberOf, which may have multiple values, each value being the distinguished name of a group to which the user belongs.

      Example	Explanation
      *:memberOf=*:?	All valid users have a memberOf attribute which stores the distinguished name of all valid groups to which that user belongs.




      Another way is to store which users belong to a group as a property of the group. This is typically seen in an attribute called member, which may have multiple values, each value being the distinguished name of a user who belongs to that group.

      Example	Explanation
      *:?=*:member	All valid groups have a member attribute which stores the distinguished name of all valid users who belong to that group.




      Finally, some servers have optimized the process by including a special attribute on the user, listing all groups to which that user belongs, all groups to which those groups belong, and so forth, all in one field. The values may be distinguished names or a special attribute.

      Example	Explanation
      *:tokenGroups=*:objectSID	All valid users have a tokenGroups attribute which stores the objectSID property of all valid groups to which that user belongs and to which those groups, in turn, belong.

    • Perform recursive search for groups: You can choose to perform a recursive search for groups. This will run a query for a user, then queries for all of the groups to which that user belongs, then queries for all groups to which those groups belong, and so forth, until all possible groups associated with that user have been found.

      Running a recursive search can have a significant impact on performance, as the server will continue to issue queries until it has found information about all groups. If it takes too long, the user may be unable to log in.

      A non-recursive search will issue only one query per user. If your LDAP server has a special field containing all of the groups to which the user belongs, recursive search is unnecessary. Recursive search is also unnecessary if your directory design does not handle group members of groups.

      Examples

      Example	Explanation
      *:?=*:member (with recursive search on)	LDAP searches for all groups of which the user is a member. It then searches for all groups that contain members by the distinguished names of the previously returned groups. It will repeat this process until no new results are found.

• Test settings

  • Username and password: Enter a username and password for an account that exists on the server you are testing. This account must match the criteria for login specified in the configuration above.

  • Try to obtain user attributes and group memberships if the credentials are accepted: If this option is checked, your successful credential test will also attempt to check user attributes and group lookup.

  • Test: If your server is properly configured and you have entered a valid test username and password, you will receive a success message. Otherwise, you will see an error message and a log that will help in debugging the problem.

  ℹ️

  For these features to be successfully tested they must be supported and configured in your security provider.

✅

See Additional setup and tips to:

• Add LDAP users to your Privileged Remote Access instance
• Configure for Active Directory 2000/2003
• Troubleshoot the integration

• Name: Create a unique name to help identify this provider.

• Enabled: If checked, your appliance can search this security provider when a user attempts to log in to the access console or /login. If unchecked, this provider will not be searched.

• Keep display name synchronized with remote system: These values determine which fields should be used as the user's private and public display names.

• Authorization settings

  • Only allow the following users: You can choose to allow access only to specified users on your RADIUS server. Enter each username separated by a line break. Once entered, these users will be available from the Add Policy Member dialog when editing group policies on the /login > Users & Security > Group Policies page.

    If you leave this field blank, all users who authenticate against your RADIUS server will be allowed; if you allow all, you must also specify a default group policy.

  • Default group policy: Each user who authenticates against an external server must be a member of at least one group policy in order to authenticate to your appliance, logging into either the /login interface or the access console. You can select a default group policy to apply to all users allowed to authenticate against the configured server.

  • LDAP group lookup If you want users on this security provider to be associated with their groups on a separate LDAP server, choose one or more LDAP group servers to use for group lookup.

• Connection settings

  • Hostname: Enter the hostname of the server that houses your external directory store.

  • Port: Specify the authentication port for your RADIUS server. This is typically port 1812.

  • Timeout (seconds): Set the length of time to wait for a response from the server. Note that if the response is Response-Accept or Response-Challenge, then RADIUS will wait the entire time specified here before authenticating the account. Therefore, it is encouraged to keep this value as low as reasonably possible given your network settings. An ideal value is 3-5 seconds, with the maximum value at three minutes.

  • Connection method

    • Proxy from appliance through the Connection Agent: If you are using an external directory store in the same LAN as your appliance, the two systems may be able to communicate directly, so leave this option unchecked.

      If the two systems are unable to communicate directly, such as if your external directory server is behind a firewall, you must use a connection agent. Downloading the Win32 connection agent enables your directory server and your appliance to communicate via an SSL-encrypted, outbound connection, with no firewall configuration. The connection agent can be downloaded to either the directory server or a separate server on the same network as your directory server (recommended).

      Check this option, create a Connection Agent Password for use in the connection agent installation process. Then click Download Connection Agent, run the installer, and follow the installation wizard. During installation, you will be prompted to enter the security provider name and the connection agent password you created above.

  • Shared secret: Provide a new shared secret so your appliance and your RADIUS server can communicate.

• Cluster settings (Visible only for clusters)

  • Member selection algorithm: Select the method to search the nodes in this cluster.

    • Top-to-bottom first attempts the server with the highest priority in the cluster. If that server is unavailable or the account is not found, the next highest priority server is attempted. The search moves down through the list of clustered servers until either the account is found or it is determined that the account does not exist on any of the specified and available servers.

    • Round-robin is designed to balance the load between multiple servers. The algorithm chooses at random which server to attempt first. If that server is unavailable or the account is not found, another random server is attempted. The search continues at random through the remaining servers in the cluster until either the account is found or it is determined that the account does not exist on any of the specified and available servers.

  • Retry delay: Set how long to wait after a cluster member becomes unavailable before trying that cluster member again.

• Test settings

  • Username and password: Enter a username and password for an account that exists on the server you are testing. This account must match the criteria for login specified in the configuration above.
  • Try to obtain user attributes and group memberships if the credentials are accepted If this option is checked, your successful credential test will also attempt to check user attributes and group lookup.
  • Test If your server is properly configured and you have entered a valid test username and password, you will receive a success message. Otherwise, you will see an error message and a log that will help in debugging the problem.

  ℹ️

  For these features to be successfully tested, they must be supported and configured in your security provider.

✅

See Additional setup and tips to:

• Authenticate using on-time passwords (OTP)
• Configure for Windows 2000/2003 IAS
• Troubleshoot the integration

ℹ️

Prerequisites

• Ensure you have a working Kerberos Key Distribution Center (KDC).
• Synchronize clocks across all clients, the KDC, and the appliance (Network Time Protocol is recommended).
• Create a service principal on the KDC for your appliance.

• Name: Create a unique name to help identify this provider.

• Enabled: If checked, your appliance can search this security provider when a user attempts to log in to the access console or /login. If unchecked, this provider will not be searched.

• Keep display name synchronized with remote system: These values determine which fields should be used as the user's private and public display names.

• Strip realm from principal names: Select this option to remove the REALM portion from the User Principal Name when constructing the BeyondTrust username.

• Authorization settings

  • User handling mode: Select which users can authenticate to your appliance.

    • Allow all users: allows anyone who currently authenticates via your Key Distribution Center (KDC).

    • Allow only user principals specified in the list: allows only user principles explicitly designated.

    • Allow only user principals that match the regex: allows only users principals who match a Perl-compatible regular expression (PCRE).

  • Default group policy: Each user who authenticates against an external server must be a member of at least one group policy in order to authenticate to your appliance, logging into either the /login interface or the access console. You can select a default group policy to apply to all users allowed to authenticate against the configured server.

  • SPN handling mode

    • Allow only SPNs specified in the list: If unchecked, all configured service principal names (SPNs) for this security provider are allowed. If checked, select specific SPNs from a list of currently configured SPNs.

  • LDAP group lookup: If you want users on this security provider to be associated with their groups on a separate LDAP server, choose one or more LDAP group servers to use for group lookup.

✅

See Additional setup and tips to:

• Understand SPN usage in Privileged Remote Access

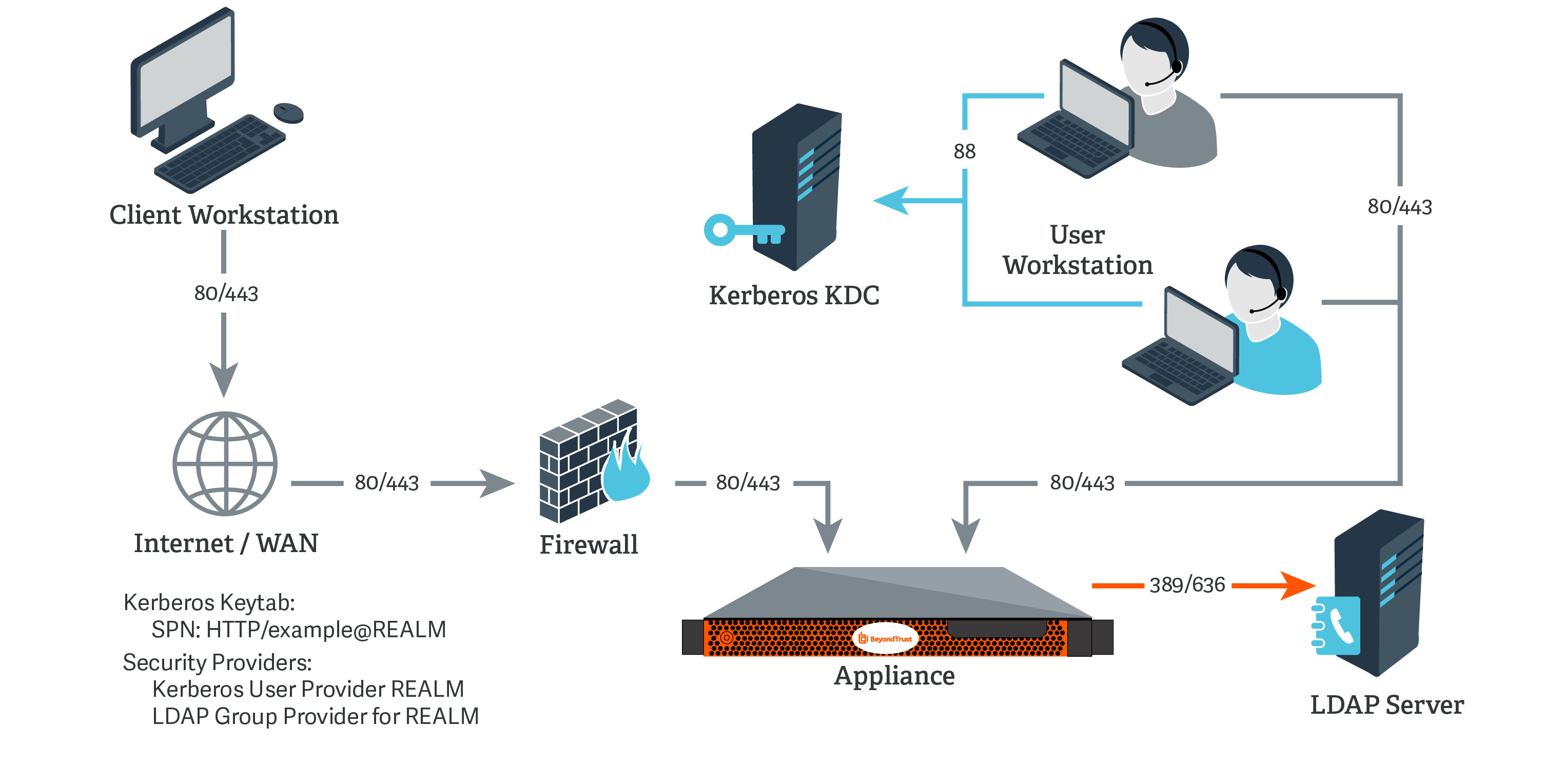

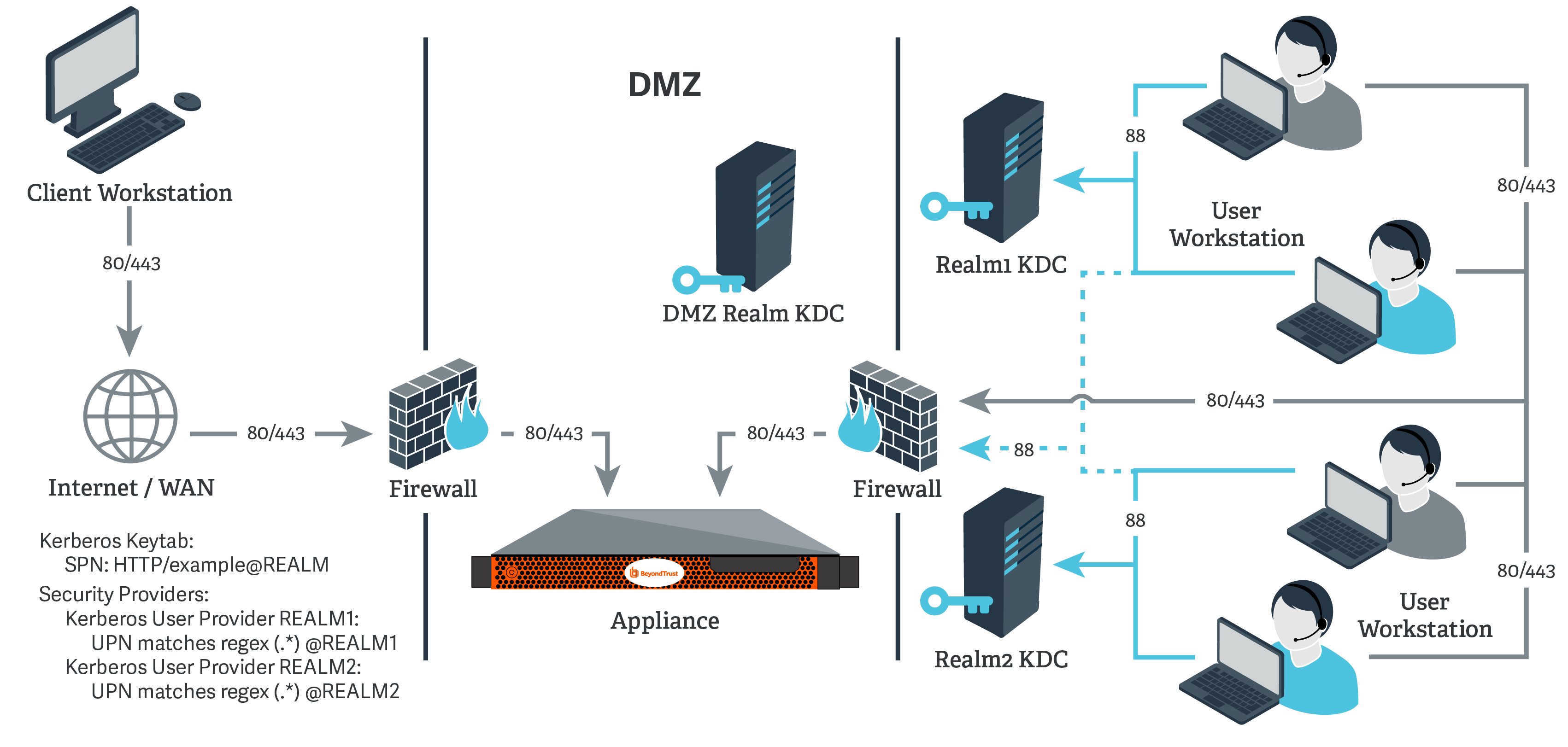

• Review network setup examples
• Troubleshoot the integration

• Name: Enter a unique name to help identify your provider.

• Enabled: If checked, your appliance can search this security provider when a user attempts to log in to the access console or /login. If unchecked, this provider will not be searched.

• Associated email domains: This setting applies only when more than one OIDC provider is active. Otherwise, it is ignored.

  Enter the email domains you want to associate with this OIDC provider, one per line. During authentication, users enter their email address, and the domain is checked against this list. If it matches, they are redirected to the corresponding identity provider for authentication.

  If multiple OIDC providers are configured and the user’s email domain does not match any provider’s associated domains, the user will not be allowed to authenticate.

• Server certificate: This is the certificate used for validating the response's signature. The certificate is usually provided by the metadata.

• Provider settings

  • OIDC endpoint: The root address where the OIDC metadata can be found with /.well-known/openid-configuration appended. Any http protocol and trailing slashes will be removed.

  • Client ID: The unique identifier for the identity provider you are using.

  • Client secret: Provide a new shared secret so your appliance and your OIDC server can communicate.

• User attribute settings

  • Username: The OIDC attribute that contains the user's unique username or login ID.
  • E-mail: The SAML attribute that contains the user's email address.
  • Display name: The SAML attribute that contains the user's display name.

• Authorization settings

  • Lookup groups using this provider: Enabling this feature allows faster provisioning by automatically looking up groups for this user, using Group lookup attribute name and Delimiter. We recommend enabling this feature. If not used, OIDC users must be manually assigned to group policies after their first successful authentication.

  • Group lookup attribute name: Enter the name of the OIDC attribute that contains the names of groups to which users should belong. If the attribute value contains multiple group names, then specify the Delimiter used to separate their names. If left blank, OIDC users must be manually assigned to group policies after their first successful authentication.

  • Delimiter: If this field is left blank, then the attribute value may contain multiple XML nodes, with each one containing a different name.

  • Available groups: This is an optional list of OIDC groups always available to be manually assigned to group policies. If left blank, a given OIDC group is made available only after the first successful authentication of a user member of such group. Enter one group name per line.

  • Default group policy: Each user who authenticates against an external server must be a member of at least one group policy in order to authenticate to your appliance, logging into either the /login interface or the access console. You can select a default group policy to apply to all users allowed to authenticate against the configured server.

    If a default policy is defined, any allowed user who authenticates against this server might have access at the level of this default policy. Therefore, we recommend you set the default to a policy with minimum privileges to prevent users from gaining permissions you do not wish them to have.

    ℹ️

    If a user is in a default group policy and is then specifically added to another group policy, the settings for the specific policy always take precedence over the settings for the default, even if the specific policy is a lower priority than the default, and even if the default policy's settings are set to disallow override.

ℹ️

• For SCIM to function, the SCIM API must be enabled on an API account, and the API must be configured on your SCIM provider. API accounts are managed at /login > Management > API Configuration.
  The base URL to use with the SCIM provider you are connecting with is [*host]/api/scim/v2*.
• Only one SCIM provider can be created. Once a SCIM provider has been created, the SCIM option is no longer available from the + Add dropdown.
• SCIM user provisioning utilizes SCIM 2.0 Users and Group objects. For more information about the SCIM 2.0 standard, see https://scim.cloud/.
• Privileged Remote Access supports SCIM APIs for groups of users. Once you have configured a SCIM provider in /login and configured users and groups in your SCIM solution, PRA reflects the same groups as what is present in your SCIM solution, allowing you to select group policies by SCIM group.

• Name: Create a unique name to help identify this provider.

• Enabled: If checked, your appliance can search this security provider when a user attempts to log in to the access console or /login. If unchecked, this provider will not be searched.

• SCIM user query ID: Select the unique ID that SCIM should use for user queries.

• SCIM group query ID: Select the unique ID that SCIM should use for group queries.

• User attribute settings

  • Username: The SCIM attribute that contains the user’s unique username or login ID.
  • E-mail: The SCIM attribute that contains the user’s email address.
  • Display name: The SCIM attribute that contains the user's display name.

• Authorization settings

  • Unique ID: Enter the SCIM attribute to use as the user's unique ID within BeyondTrust.
  • Default group policy: Each user who authenticates against an external server must be a member of at least one group policy in order to authenticate to your appliance, logging into either the /login interface or the access console. You can select a default group policy to apply to all users allowed to authenticate against the configured server.

ℹ️

If a default policy is defined, then any allowed user who authenticates against this server will potentially have access at the level of this default policy. Therefore, it is recommended that you set the default to a policy with minimum privileges to prevent users from gaining permissions that you do not wish them to have.

If a user is in a default group policy and is then specifically added to another group policy, the settings for the specific policy will always take precedence over the settings for the default, even if the specific policy is a lower priority than the default, and even if the default policy's settings are set to disallow override.

• Name: Enter a unique name to help identify your provider.

• Enabled: If checked, your appliance can search this security provider when a user attempts to log in to the access console or /login. If unchecked, this provider will not be searched.

• User provision: By default, user provisioning occurs on this provider. If you have a SCIM provider set up, you can choose to provision users through that provider instead.

• Associated email domains: This setting applies only when more than one SAML provider is active. Otherwise, it is ignored.

  Enter the email domains you want to associate with this SAML provider, one per line. During authentication, users enter their email address, and the domain is checked against this list. If it matches, they are redirected to the corresponding identity provider for authentication.

  If multiple SAML providers are configured and the user’s email domain does not match any provider’s associated domains, the user will not be allowed to authenticate.

• Identity provider settings

  • Metadata: The metadata file contains all the information needed for the initial setup of your SAML provider and must be downloaded from your identity provider. Save the XML file, and then click Upload Identity Provider Metadata to select and upload the selected file.

  • Entity ID: The unique identifier for the identity provider you are using.

  • Server certificate: This certificate will be used to verify the signature of the assertion sent from the identity provider.

    ℹ️

    The fields for Entity ID, Single sign-on service URL, and Certificate are automatically populated from the identity provider's metadata file. If you cannot get a metadata file from your provider, this information can be entered manually. For metadata files with multiple identity providers, enter the Entity ID of the desired Identity Provider in the field below before uploading the metadata.

  • Single sign-on service URL: When you want to log in to BeyondTrust using SAML, this is the URL where you are automatically redirected so you can log in.

  • SSO URL protocol binding: Determines whether a user posts or is redirected to the sign on URL. This should be left defaulted to redirect unless otherwise required by the identity provider. If request signing is enabled (under Service Provider settings), protocol binding is limited to redirect only.

• Service provider settings

  • Download service provider metadata: Download the BeyondTrust metadata, which must then be uploaded to your identity provider.

  • Entity ID: This is your BeyondTrust URL. It uniquely identifies the service provider.

  • Private key: If necessary, you can decrypt messages sent by the identity provider, if they support and require encryption. Click Choose File to upload the private key necessary to decrypt the messages sent from the identity provider.

  • AuthnRequest signing certificate: This is the certificate used for signing AuthnRequests. The following formats are accepted: .cert, .cer, .crt, .der, .pem, .x-x509-ca-cert, .x-x509-user-cert, .x-pem-file.

  • Signed AuthnRequest: Check to enable request signing. If enabled, SSO URL protocol binding is limited to redirect only. The SSO URL protocol binding field is updated automatically, if necessary. A private key and signing certificate is required for request signing.

• User attribute settings: SAML attributes are used to provision users within BeyondTrust. The default values match BeyondTrust-certified applications with various identity providers. If you are creating your own SAML connector, you may need to modify the attributes to match what is being sent by your identity provider.

  • Username: The SAML attribute that contains the user’s unique username or login ID.

  • E-mail: The SAML attribute that contains the user’s email address.

  • Use case-insensitive comparison for NameIDs: If your identity provider requires case-insensitivity for the NameID attribute, select this option.

  • Display name: The SAML attribute that contains the user's display name.

• Authorization settings

  • Lookup groups using this provider: Enabling this feature allows faster provisioning by automatically looking up groups for this user, using Group Lookup Attribute Name and Delimiter. We recommend enabling this feature.

    If not used, SAML users must be manually assigned to group policies after their first successful authentication.

  • Group lookup attribute name: Enter the name of the SAML attribute that contains the names of groups to which users should belong. If the attribute value contains multiple group names, then specify the Delimiter used to separate their names.

    If left blank, SAML users must be manually assigned to group policies after their first successful authentication.

  • Delimiter: If this field is left blank, then the attribute value may contain multiple XML nodes with each one containing a different name.

  • Available groups: This is an optional list of SAML groups always available to be manually assigned to group policies. If left blank, a given SAML group is made available only after the first successful authentication of a user member of such group. Enter one group name per line.

  • Default group policy: Each user who authenticates against an external server must be a member of at least one group policy in order to authenticate to your appliance, logging into either the /login interface or the access console. You can select a default group policy to apply to all users allowed to authenticate against the configured server.
    If a default policy is defined, any allowed user who authenticates against this server might have access at the level of this default policy. Therefore, we recommend you set the default to a policy with minimum privileges to prevent users from gaining permissions you do not wish them to have.

    ℹ️

    If a user is in a default group policy and is then specifically added to another group policy, the settings for the specific policy always take precedence over the settings for the default, even if the specific policy is a lower priority than the default, and even if the default policy's settings are set to disallow override.

• Test settings: You can test the SAML configuration from this page. The provider must be saved before it can be tested. Click Save at upper left area of the screen, then scroll down and click Test. The configuration is tested against the identity provider, and a test results page shows the SAML response and a formatted version of the assertion XML. The responses can be copied to other tools if further review is required.

✅

See Additional setup and tips to learn how to:

• Sign in to the access console
• Sign in to the admin interface

After establishing a functional security provider, follow the steps below to add LDAP users to the appliance for authentication.

1. Go to https://example.beyondtrust.com/login and log in as an administrator user.
2. Click Users and Security > Group Policies, select a policy to add users, and click the edit (pencil) icon.
3. Under Available Members, select the LDAP security provider from the drop-down menu.
4. Select the User or Group you want to add and click the Add button to move the selection to the Policy Members field.
5. Click Save when done to save the policy.
6. The user should now be permitted to authenticate with the access console or the Administrative Web interface.
7. Once the user has authenticated, they will appear in the User Accounts list shown below in the Administrative web interface.

By default, Active Directory requires that a bind username and password be used to search the LDAP directory store. This user account must have permission to read the attributes you specified in the User Query for all users you want to be able to authenticate against this LDAP server.

ℹ️

Although a Domain Admin account has this read permission by default, using such an account is highly discouraged. While BeyondTrust takes every measure to protect the security of your information, there may still be security risks from having these credentials frequently transmitted.

The recommended configuration is to create a specific account for the appliance to use for browsing the Active Directory server. Once this account is created, you can specifically grant the limited set of permissions necessary for this account to allow users to log into the BeyondTrust web interface or access consoles without compromising your organization's security.

To expressly grant permission to read a particular attribute to a specific user or group, the Active Directory Access Control List (ACL) must be modified. To do this, the following command must be executed by a user who has schema modification permissions (e.g., a member of the Domain Admins built-in group):

dsacls [distinguished name of domain] /I:T /G "User or Group":rp;tokenGroups

An example of this tool is as follows:

dsacls "DC=example,DC=local" /I:T /G "BeyondTrustAppliance":rp;tokenGroups

This grants the account BeyondTrustAppliance the permission to read the property tokenGroups on any object in the domain DC=example,DC=local.

When using the RADIUS security provider, you can choose to use a one-time password (OTP) service provider, such as RSA SecurID. An OTP is a randomized password that is generated by a third-party service provider through a token or some other means and changes within a certain time frame to provide an extra layer of security upon login.

Within your OTP provider's interface, you can configure a prompt to appear asking for credentials on the login screens for the BeyondTrust access console or /login administrative interface. Once configured, users must enter their BeyondTrust username and password and then the OTP into the prompt.

If the OTP is entered correctly, access to the BeyondTrust access console or /login administrative interface will be granted.

However, if the OTP is entered incorrectly, a new prompt will appear asking for the password to be re-entered.

Each user who will be authenticating with your IAS server must have remote access permission. The remote access permission can be defined via the Active Directory Users and Computer snap-in. View the properties for the appropriate user. On the tab Dial-in, grant the Allow Access to Remote Access permission.

You can also configure this permission through the remote access policy. Please consult your Windows documentation for the proper steps.

🚧

Important information

The policy must allow for authentication via PAP, as this is the only RADIUS method currently supported by BeyondTrust. Review your IAS policy and ensure this method is supported as a means of authenticating via your appliance.

Browsers may use different methods to canonicalize the hostname for a site, including performing a reverse lookup of the IP of the hostname specified in the URL. The SPN canonicalization of this address may cause the browser to request an SPN based on an internal hostname rather than the appliance hostname.

For example, a BeyondTrust site built as hostname access.example.com might ultimately resolve to the hostname internal.example.com.

access.example.com → 10.0.0.1 → 1.0.0.10.in-addr.arpa → internal.example.com

The BeyondTrust software expects the SPN in the form of HTTP/ followed by the hostname configured in the BeyondTrust software during purchases or upgrades (HTTP/access.example.com). If the browser canonicalizes the hostname to an internal hostname and uses that hostname for the SPN (HTTP/internal.example.com), authentication will fail unless you have registered SPNs for both HTTP/internal.example.com and HTTP/access.example.com, and installed them on your appliance.

If SPNs for multiple hostnames are imported, the BeyondTrust software will use the site hostname to which it was previously able to connect as a client. Therefore, if you are experiencing Kerberos authentication issues, it is advised to import a keytab for each hostname to which the site might canonicalize.

To log into the BeyondTrust access console, select SAML Credentials from the dropdown menu.

If you have not yet logged into your identity provider, you are redirected using the default browser. After logging into the identity provider, the web browser redirects you to access console.

ℹ️

Users can access the mobile access console using SAML for mobile. To learn more, see Log in to the Android access console using SAML for mobile and Log in to the iOS access console using SAML for mobile.

From the /login administrative interface, select Use SAML Authentication.

If you have not yet logged in to your identity provider, you are redirected to their site to enter your credentials.

When you click Sign In you are taken to the /login interface.

ℹ️

If you are already logged into your identity provider, then when you click Use SAML Authentication to log in, you are taken directly to the /login interface.
